86 Inch Outdoor Double Sided Kiosk(Tiger Metallic Grey Color)
Model:XT86OELVD9183
Product Overview

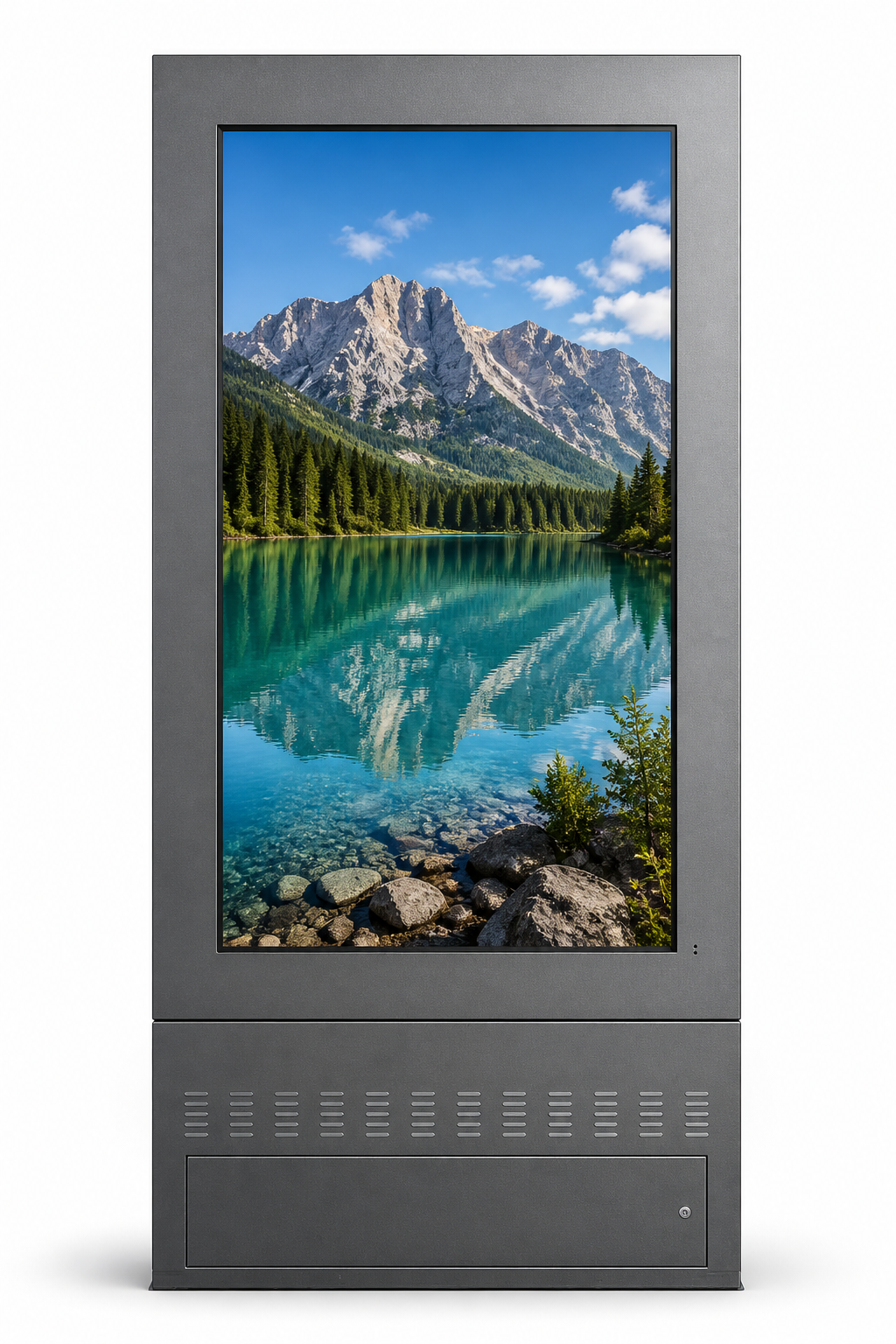

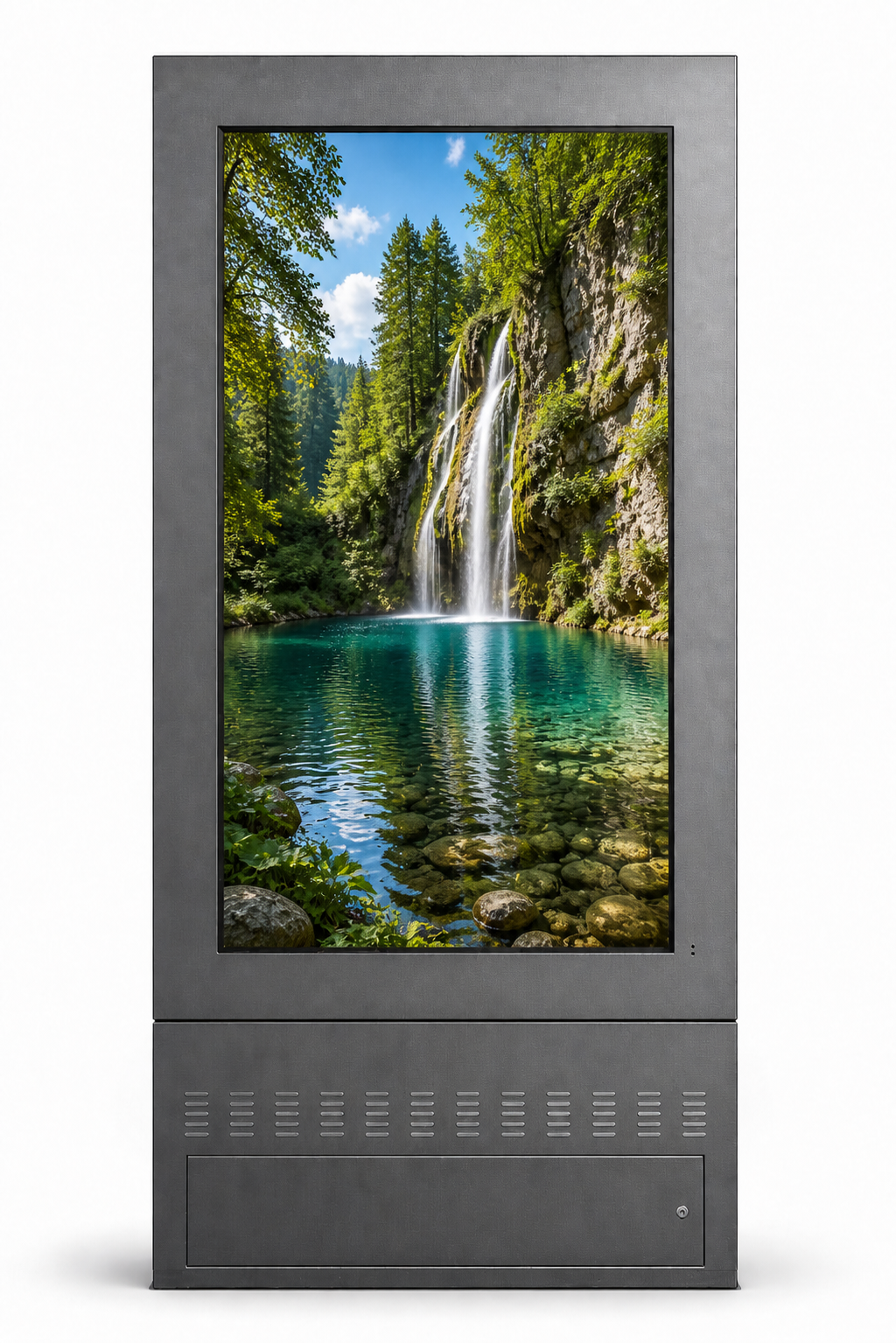

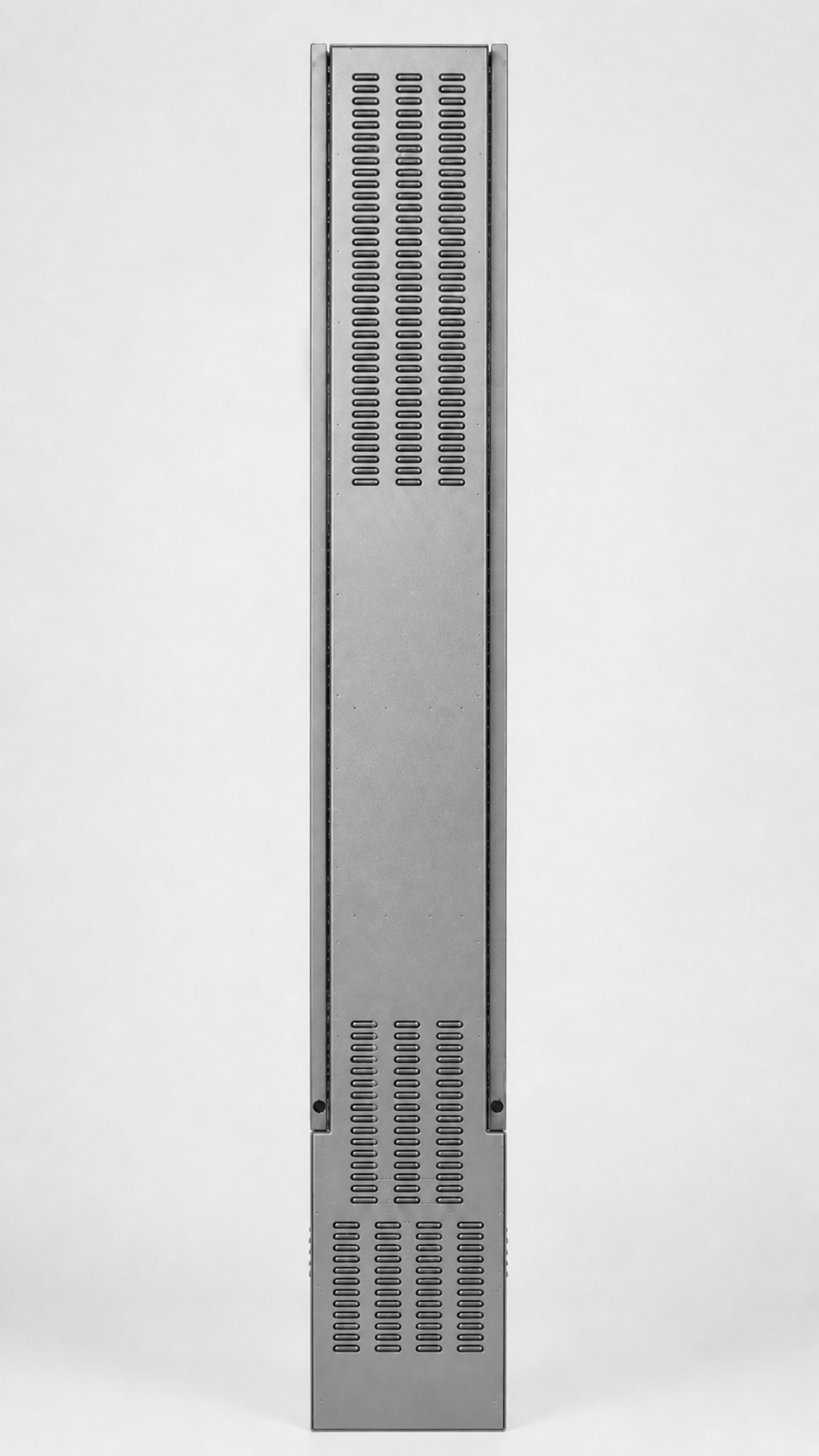

The 86″ Outdoor Double Sided Kiosk is designed for high-impact outdoor digital signage in demanding environments such as streets, parks, transportation hubs, and commercial areas.
Featuring dual 2500 nits high-brightness screens, this kiosk ensures excellent visibility from both sides even under direct sunlight. Built with industrial-grade components, an IP65-rated enclosure, and an integrated air conditioning system, it delivers stable 24/7 operation in all weather conditions.
Product Features
*Built-in Eco-Friendly Air Conditioner (Core Advantage)
Equipped with an advanced eco-friendly air conditioning system that ensures stable internal temperature without using traditional compressors or refrigerants.With a zero-leakage design significantly improve reliability and lifespan, making it ideal for long-term outdoor operation.
*Dual-Sided High Brightness Display
Equipped with two 2500 nits screens, providing outstanding visibility and maximum exposure from both directions.
*IP65 Weatherproof Protection
Fully sealed IP65 enclosure protects against dust, rain, and harsh outdoor environments, ensuring long-term reliability.
* Intelligent Temperature Control System
Built-in air conditioning system automatically adjusts cooling and heating, ensuring stable performance in extreme temperatures.
*Auto Brightness Adjustment
Integrated light sensor detects ambient light and automatically adjusts screen brightness to optimize visibility and reduce power consumption.
*Anti-Vandal Protection
6mm toughened glass protects the display from impact and vandalism, suitable for public environments.
*Easy Installation & Maintenance
Front door design with lock allows convenient maintenance. Flexible installation options: pole-mounted, wall-mounted, or rooftop.
*24/7 Continuous Operation
Industrial-grade design supports uninterrupted operation all year round.
Product Specifications
Display Panel
Screen Size: 86″
Active Area: 1068(h) × 1897(v) mm
Resolution: 2160 × 3840
Brightness: 2500 nits
Contrast Ratio: 1200:1
Viewing Angle: 89°/89°
Response Time: 8 ms
Backlight Lifetime: 50,000 hours
Screen Orientation: Portrait
Physical
Dimensions: 1413(h) × 2927(v) × 400(d) mm
Material: Galvanized steel with powder coating
Color: Black
Net Weight: 600 kg
Glass: 6mm Anti-glare (AG glass)
IP Rating: IP65
Environment
Operating Temperature: -40°C to 55°C
Humidity: 5% to 95%
Working Environment: Full outdoor
System & Connectivity
Input: HDMI
Auto Brightness Control: Yes (Light sensor)
Power
Power Supply: AC 220V, 50/60Hz
Max Power Consumption: 3500W (including air conditioner)
